Small Injection Molding Machine

Small Injection Molding Machines with a lower value for Sale:

Haichen Machine is a supplier of small injection molding machines. Haichen produces the same size injection molding machine, with a smaller tei bar distance and lower injection weight. The small injection molding machine’s price and specifications are on the catalog, which can be downloaded directly.

Haichen mini injection molding machines are mainly used to fill the production space of large-scale injection molding machines, which cannot meet the requirements of small-scale production and small-scale manufacturing in the industrial production field.

Due to its miniaturized design concept, small size, high applicability, and no need for too much space, the Haichen mini injection molding machine is very suitable for:

-Small injection molding production at home
-Classroom teaching for the lab uses a small injection molding machine.
-Small sample making by injection molding
-The processing requirements for high-precision and micro shaped products.

Small injection molding machines are mainly used for producing: color cards, small gears…

Many times, the applicability of small injection molding machines is somewhat similar to the new type of 3D printing. But the production capacity of Desktop injection molding is unmatched by 3D printers.

Small injection molding machine for labs

Haichen Laboratory uses small injection molding machines, which have a wide range of applications in scientific research and teaching. Its main features include small size, easy operation, and suitability for processing high-precision micro shaped products.
Here are several common laboratory small injection molding machines and their characteristics:
Haichen HCK-30 Small Injection Molding Machine
Application industry: Suitable for precision injection molding of various test strips (such as tensile, impact strips, and color cards) prepared in the laboratory.
Features: small size, easy to operate,21 different operation languages suited for high-precision micro shaped products.
These small injection molding machines are not only suitable for classroom teaching and research formulation, but also capable of high-precision microfabrication processing, making them indispensable equipment in laboratories.

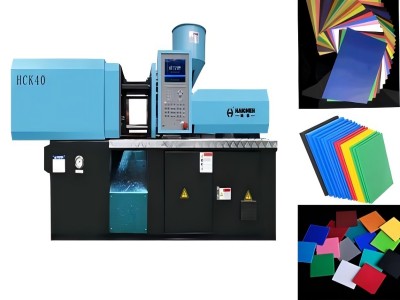

Small plastic injector machine for swatch

Swatch parts like color cards, and use a small injection molding machine. It is a device used for precision injection molding, especially suitable for various test samples (such as tensile, impact samples, and color cards). This machine is compact in size, easy to operate, and can meet the processing needs of high-precision micro shaped products.
In the market, there are various brands and models of small injection molding machines for swatch to choose from. Haichen HCK30 to HCK70 fully automatic color card and palette mini machine is one of the popular machines. In addition, the small injection molding machines provided by Haichen usually have fully automatic functions and support multiple payment methods such as foreign currency payments

Micro injection molding machine for Gear

The gear-specific micro injection molding machine is specifically designed to produce precision plastic gear parts. Has high precision and stability. Haichen is an enterprise that produces small injection molding machines specifically for gears. Our HCK-50 model is particularly suitable for gear production, and its features include:
Locking parts: thickened template, small mold positioning hole, suitable for small molds, extending mold service life.
Injection components: Adopting a dual cylinder dual track design, effectively improving the linear accuracy and stability of injection.
In addition, Haichen has also released a small injection molding machine HCK-30, which is also suitable for injection molding the precision gears and other electronic components, and has the smallest external dimensions in the same class, achieving the compactness of the molding production line.
Gear specific small injection molding machines play an important role in modern industrial production, especially in application fields that require high precision and stability. By using these specialized equipment, enterprises can produce high-quality plastic gear products more efficiently and accurately.

CLAMPING UNIT

Clamping parts through computer simulation, from the feature of kinematics and dynamics of the whole optimization, adopted the advanced technology of oblique five fulcrum hyperbolic toggle clamping mechanism, template by the finite element analysis, aninnovative hollow spherical head plate structure, box-type supportingplate and conjoined structure templates, etc., to ensure the highrigidity and high reliabiity of clamping parts, to achieve the processsmoothly, clamping, at the same time pull rod that large span, can beinstalled a larger mold.

Larger space between tie-bars, suitable for larger molds, and multi-cavity necessary.

Longer and wider guide length, higher repeatability precision, improve product quality and mold working-life.

Upgraded parts, Graphite-copper bushes and slider used on tie-bar,ejector and movable platen, ensure fast and precise mold close and open.

Better designed mechanical structure and toggle system, faster cycle time, and improve production efficiency. European type ejector structure, larger space, convenient for maintenance.

Prepared enough space for upgrade and retrofits.

Much higher rigidity mechanical system than normal Chinese IMM, not only improve machine’s using-life, but also can protect mold.

STABLE INJECTION DEVICE

Injection parts adopt double oil cylinder balanced injection, double linear guide rail support.

Rich special screw library for customers to choose to meet the requirements of various plastic injection materials molding, and can cooperate with a variety of special injection equipment, convenient for customers.

High performance low-speed hydraulic motor with large torque is used to directly drive the screw pre-molding.

There are several screws and barrels with optimal design, Respectively, nitride, hard chromium plating, dual-metal, which is suitable for different plastic material’ s request
The setting of multi-stage injection speed and pressure and multi-stage pressure holding can control the pressure holding switching point from injection time, position and pressure to ensure the molding quality.
Large torque hydraulic motor can make the pre-plastic quality stable, high precision electronic ruler to make accurate position detection.

INTELLIGENT CONTROLMAKES THE OPERATION EASIER

Stable and reliable hardware:

Adopt world first-class hardware and production testing technology, ensure its stable and reliable quality. IO short circuit protection function, more safety for using: All of product passed CE certificate. stable hardware performance reduced your maintenance and service cost.

Excellent control software:

Control software has been very mature and perfect. To ensure the stable and smooth movement of the machine, it also provides automatic calibration and automatic acquisition of the mold parameters (Easy-Mold), improved temperature PID control and other innovative features.

User-friendly menu design:

New humanized interface design, the layout is more reasonable, more convenient operation, let the user get the experience of “machine to use the original” so easily.

QUICK RESPONSE STABLE OUTPUT OIL SYSTEM

Based on the modular design of the hydraulic system, both precision and energy saving technology, and meet the high efficiency production of synchronous movement, we can easily solve for you.

Energy saving

Standard with precision and energy saving servo power system, the output drive system is sensitively altered, according to the actual need of the plastic parts being produced, avoid energy waste. Depending on the plastic parts being produced and the material being processed, energy-saving ability can reach to 20%-80%

Environmental Protection

The machine is running low noise, low power consumption; European Famous hydraulic hose, using the DIN standard spherical joints, valve plate with G thread sealing plug, to prevent oil pollution.

Convenient

The oil tank adopts visual and detachable design, which makes oil products clear at a glance and easy to maintain. At the same time, self-sealing magnetic oil absorption filter, and all the pipe joints are arranged in a reasonable way, simple and convenient maintenance.

CONFIGURATION LIST
Name	Standard	Optional
Controller	Techmation (Taiwan)	Keba( Austria)
Hydraulic pump	High-tech(USA)	ECKERLE(Gemany)
Directional valve	Yuken( Japan)	Vickers(U.S.A)
Motor drive	Phase(Italy)	Rexroth(Germany)
Hydraulic motor	Dandun(Italy)	Intermot(Italy)
Electric equipment	Schneider electric (France)	Schneider electric (France)
Electronic foot	Bonny(USA)	NOVOtechnik(Germany)
Lubrication	HERG	HERG
Airproof piece	Hallite(UK)	Hallite(UK)

DEVICE CONFIGURATION

Injection Unit

Double cylinder injection system

High quality barrel and screw

Multi stages of speed, pressure and position for injection, hold on and charge

Position or time hold on charge over

Injection cushion monitoring

Screw position transducer control

Prevent the screw cold start

Low speed, high torque screw drive motor

Close loop barrel temperature control

Steel hopper

Clamping Unit

Five point double toggle clamping unit

Transducer for mold open and close

Mechanical safety device

Multi stage of mold open/close speed, pressure and position

Electric Unit

Big size color LCD screen

100 Sets of mold data memory

Barrel temperature monitoring and thermocouple break alarm

Molding condition monitoring with alarm

System hardware I/O testing function

Interface for printer and floppy driver

Electric motor safety protection

Emergency stop safeguard device

Multi ejector model

Automatic mold height adjustment

Low pressure mold protection

T-slot

Auto centering lubrication system

Water flow regulator for mold

Accessories Unit

Self seal magnetic suction filter

Oil temperature control and alarm

OPTIONAL DEVICE

Wide range of clamping and injection unit for special application

DFEE Close loop pump

Special material screw and barrel

Simultaneous of mold opening and ejection

Spring, extended and hydraulic shut off nozzle

Screw RPM show

Multi-loop hydraulic system

Accumulator

Core pull

Air blast

Heat insulation plate

Water manifolds

Automatic safety door

Feed zone temperature automatic control system

Pre-heating for hydraulic oil

Oil temp regulation with temp indication

Magnet for hopper

Photoelectric check for mold

Proportional back pressure

Monitor and control at far way in internet

Hydraulic safety interlock

SPC electric products selection device

HCK30	30 Tonnage – US Standard (US Tons)	240*210 MM Tie Bar Distance	28.2/33.6 G Shot weight(PS)	195-60 mm Max-Min Mold height
HCK40	40 Tonnage – US Standard (US Tons)	260*240 MM Tie Bar Distance	47/58 G Shot weight(PS)	300-100 mm Max-Min Mold height
HCK50	50 Tonnage – US Standard (US Tons)	280*280 MM Tie Bar Distance	67.5/80 G Shot weight(PS)	340-120 mm Max-Min Mold height
HCK70	70 Tonnage – US Standard (US Tons)	330*330 MM Tie Bar Distance	102/115.6/129.7 G Shot weight(PS)	360-130 mm Max-Min Mold height
HCK80	80 Tonnage – US Standard (US Tons)	370*370 MM Tie Bar Distance	112/126/140 G Shot weight(PS)	360-150 mm Max-Min Mold height

RULES OF GUARANTEE PERIOD FOR HAICHEN

PLASTIC INJECTION MOLDING MACHINE

WELCOME TO USE “HAICHEN” PLASTIC INJECTION MOLDING MACHINE,HERE UNDER IS THE RULES OF GUARANTEE PERIOD

THE STARTING DATE FOR GUARANTEE PERIOD WILL BE CALCULATED FROM THE DATE THE MACHINE IS SHIPPED FROM HAICHEN.
CUSTOMER CAN ENJOY THE FOLLOWING GUARANTEE SERVICE DURING THE GUARANTEE PERIOD ONLY UNDER THE CONDITION THAT THEY OPERATE HAICHEN MACHINE CORRECTLY WITH RIGHT PLASTIC MATERIAL AND NORMAL OPERATION.
THE CATEGORY AND INSTRUCTION OF THE MAIN GUARANTEE ITEMS (REFER TO THE FOLLOWING 1ST FORM AND 2ND FORM).

1ST FORM
ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD
CONTROLLER	12 MONTHS	DIRECTIONALVALVE PUMPS(VICKERS/USA)	12 MONTHS	PLATEN	24 MONTHS
CONTACTOR	6 MONTHS	DIRECTIONALVALVE PUMPS(SUNNY/USA)	18 MONTHS	TIE BAR	24 MONTHS
HEATING BAND	6 MONTHS	HYD MOTOR	18 MONTHS	OTHER MECHANICAL PARTS	12 MONTHS
OTHER ELECTRICAL ELEMENT	12 MONTHS	OTHER HYDRAULIC COMPONENT	12 MONTHS
NOTE: FOLLWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1. MACHINE IS DAMAGED BY INCORRECT OPERATION;
2.THE PLATEN AND TIE BAR ARE DAMAGED DUE TO THE UNPARALLEL MOLD MOUNTED ON THE MACHINE OR NET&BOLT OF TIE BAR IS REMOVED WITHOUT AUTHORIZATION;
3.THE CONTACTION AREA BETWEEN MOLD AND PLATEN IS LESS THAN SPECIFIED INSTRUCTION IN USER MANUAL OR IRREGULAR PRACTICES OF BOLT CAUSE THE PLATEN TO BE DAMAGED;
4.THE HYDRAULIC PARTS GOT DAMAGED AFTER USING POOR QUALITY HYDRAULIC OIL;
5.LACK OF LUBRICATION OR DAILY MAINTENANCE, DURING THE MACHINE RUNNING;

2ND FORM
RAW MATERIAL	GUARANTEE PERIOD FOR BARREL&SCREW
	NITRIDING	STAINLESS	BIMETAL
		STEEL	GENERAL	SPECIAL
NON-ENGINEERING PLASTIC MATERIAL&PROCESSING WASTAGE PP/PE	6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) ABS PC PA PMMA	6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) PBT PPS	4 MONTHS	6 MONTHS	5 MONTHS	12 MONTHS
15-30% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL	3 MONTHS		5 MONTHS	12 MONTHS
30-40% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL	2 MONTHS		3 MONTHS	10 MONTHS
FLAME RETARDANT OR CORROSINE ADDITIVE THE PLASTIC MATERIAL POM\PVC	3 MONTHS	10 MONTHS		18 MONTHS
NOTE :FOLLOWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1.THE HEATING TEMPERATURE HAS NOT ARRIVED PROPERLY WHEN OPERATING THE MACHINE OR THERE ARE METAL ADULTERANT IN THE PLASTIC MATERIAL WHICH MAKES SCREW DAMAGED;
2.THE MACHINE RUNS DESULTORILY OR THE SCREW GOT EROSION WITHOUT IN TIME DISLODGING;
3.THE SCREW TYPE IS NOT SUITABLE FOR THE RAW MATERIAL PROCESSING ON THE MACHINE DUE TO WRONG INFORMATION GIVEN WHILE IN PURCHASE.

DURING THE GUARANTEE PERIOD,THE SELLER WILL PROVIDE THE BUYER CORRESPONDING PARTS TO EXCHANGE THE DAMAGED PARTS FREE OF CHARGE UNDER THE CONDITION THAT THE BUYER RUN THE MACHINE CORRECTLY. IF NECESSARY, THE SELLER WILL ALSO SEND ENGINEER TO THE BUYER’S FACTORY TO SOLVE THE QUALITY PROBLEMS. EXPENSES OF ENGINEERS BE BORN BY WHICH PARTY DEPEND ON THE ACTUAL SITUATION.

No results found.

What is the smallest injection mold machine?

The world’s smallest injection molding machine weighs 10 kilograms. This micro desktop injection molding machine can be placed on a desktop to work, making it very suitable for home use and used to make small batches of plastic products such as plastic toys. Haichen smallest injection molding machine is 300 kn- HCK 30.

How much does it cost to make a small injection mold?

Between $400 and $1,000

The price of the smallest injection mold can be very low. For example, the price of some simple injection molds can even be as low as 2800 yuan. In addition, the price of some small injection molds is also around 6800 yuan. These prices indicate that even smaller injection molds can be very affordable.

How much does it cost to make a small injection mold

What is mini injection molding machine

-Very small clamping force injection molding machine

–For small plastic parts: manufacture injection molding machine

– Fast, stable and precise injection molding machine

– Special advantages in the field of research and the production of high-precision products.

Mini injection molding machine is typical for manufacturing small plastic parts: cases, electrical components, parts of computers, and household appliances. In various industries you can find different small products manufactured by mini injection molding machine

How to choose mini injection molding machine

Specific product and material choices will influence your machine selection, but some more general features to evaluate include:

*Quality

The product design will determine the tolerances required to produce the item, so your injection molding machine should be able to mold the product repeatedly within those tolerances. Hybrid and electric machines offer the highest accuracy, while hydraulic machines tend to have the worst accuracy. Motors generally provide the highest repeatability.

*Clamping force

Hybrid machines offer the greatest clamping force, but purely hydraulic machines are also ideal for producing larger sizes.

*Speed

Part productivity may play a role in machine selection. Electric injection molding machines tend to offer the fastest production speeds.

Material selection

Material selection may limit your machine choices. Hydraulic presses often require higher molding temperatures, so not all resins are suitable for use with them.

*Mold size and design

Make sure the injection molding machine is large enough to accommodate the required mold. Hybrids and electric motors offer the most flexible design options.

*Hydraulic accumulator

Accumulators help provide consistency and stability during the injection process, which is especially needed for thin-wall projects.

*Screw type

Universal screws may work for most plastics, but they may slow down production and reduce quality on some materials. Other materials may require specialized screws to achieve specific injection pressures.

*Special Purpose

Fluid leaks from hydraulic systems can render these machines unusable for cleanroom parts production.

Not sure about choosing the right mini injection molding machine for your project? Haichen has the machines, expertise and decades of experience, so contact us today to find out how we can help.

Haichen injection molding machine’s story

Haichen was established in 2005, at the beginning of the company, we are committed to provide customers with complete solutions for the production of plastic products in injection molding machines.

At first, we focus on the independent design of injection molding machine and production line quality control, over the years we for each generation of customer experience for uninterrupted analysis, continuous improvement and enhancement of our haichen injection molding machine performance.

In the latest exploration, we work with customers to develop and explore the potential of injection molding machine, has been able to complete according to the customer’s ideal, from mould design to machine configuration one-stop solution for everyone’s production needs.

The Advantages of the All-electric e-mac, the Small Injection Moulding Machine

There are many advantages to using all-electric e-mac, the small injection moulding machine including:

Higher productivity
Cost-effective and low cost
Low space requirement
Machines are easy to clean and maintain

Let’s take a look at these advantages in details.

Higher productivity

The all-electric e-mac, the small injection moulding machines allow you to increase your productivity by allowing you to produce more parts in less time. The increased speed and throughput of these machines make them ideal for mass production and prototyping. It can improve the effective utilization of materials, shorten the molding cycle, reduce the cost of mold making, improve the production efficiency, and save space and energy.

Cost-effective and low cost

The all-electric e-mac, the small injection moulding machines can reduce the cost per part. And higher efficiency means fewer parts are needed to make a product, which reduces the cost per part. This is especially important considering that most of your expenses come from raw materials, tooling and labor. Therefore, it is necessary to use a variety of methods to reduce these costs. This includes reducing scrap rates as well as solidification and cooling times for each cycle through the furnace or oven.

Low space requirement

Small injection moulding machine molds require less space for micro-injection machines than conventional machines due to their small size. This means that not only can production costs be reduced, but more work can be done in less time, increasing productivity.

Machines are easy to clean and maintain

The all-electric e-mac, the small injection moulding machines are easier to clean and maintain because they have fewer moving parts than larger machines. This means that they don’t have much oil or grease in their systems, which makes maintenance easier for your employees and the environment. They’re also safer because they don’t require as much maintenance time, so there’s less chance of injury while operating them.

How much does it cost to make a small injection mould

A small and simple single cavity plastic injection mold usually costs between $1,000 and $5,000.

Very large or complex molds may cost as much as $100,000 or more.

On average, a typical mold that produces a relatively simple part small enough to hold in your hand costs around $12,000.

To determine overall plastic injection molding costs for any project

You have to consider raw material, operation, and repair costs and so on.

The determining factors in the cost of your mold :

Combination of the part size,

Complexity,

Material

*Size of your part: Larger components necessitate larger molds,

which necessitate more material and time in production.

Costs are connected with the production of a bigger mold

If the mold is manufactured anywhere other than the facility

Will be producing your components.

*Your part’s complexity: Keep in mind that building an injection mold is a process in and of itself.

The more complicated your part, the longer it will take to produce the mold.

Greater accuracy is necessary to maintain the mold’s and the part’s quality.

Reputable mold maker will collaborate with you to manage flow rate, cooling time, and other critical components of the molding process.

*Your mold material: Tool steel is often regarded as the benchmark in injection mold material.

It is high-quality, robust, and generally long-lasting, and it may be used with a wide variety of plastic injection molding materials.

It is also one of the most expensive mold materials available.

Depending on the needs of the finished products, a broad range of polymers can be utilized for injection molding.

The cost involved when you buy plastic injection mold materials varies depending on the material selected.

Thermoplastic pellets range in price from $1 to $5 per kilogram.

This will minimize the potential for defects and improve the overall efficiency of the production process.

There are a few key things to keep in mind when simplifying a design for injection molding:

Remove any features that are not absolutely essential to the function or aesthetics of the final product.
Make sure that all remaining features are as simple as possible, with clean lines and smooth surfaces.
Avoid sharp corners and other areas where material could become trapped during the injection molding process.

What is the Cost of a Mini Plastic Injection Molding Machine?

Small injection molding machines, also known as mini plastic injection molding machines, have gained popularity among manufacturers and hobbyists alike due to their compact size, versatility, and cost-effectiveness. In this article, we will explore the cost considerations associated with mini plastic injection molding machines, focusing on the quotation range of machines with a tonnage of 30-80t.

1. Understanding the Quotation Range for Mini Plastic

Injection Molding Machines:

The cost of a mini plastic injection molding machine can vary depending on several factors, including the tonnage, features, quality, and brand of the machine. For machines with a tonnage range of 30-80 tons, the quotation range is usually within US$8,000-14,000 of the FOB price. It is important to note that these prices are indicative and can vary depending on individual suppliers, market conditions and specific demand.

2. Factors Affecting the Cost of Mini Plastic Injection Molding Machines:

Tonnage:

The tonnage of an injection molding machine refers to its clamping force. Higher tonnage machines are capable of injecting larger volumes of molten plastic and are generally priced higher than lower tonnage machines. Within the 30-80t range, the cost of the machine tends to increase with higher tonnage.

Features and Specifications:

Mini plastic injection molding machines come with varying features and specifications. Machines with advanced features such as servo motor-driven systems, precise control systems, and multi-stage injection capability may command a higher price compared to basic models. Additional features like automated operation, touchscreen interfaces, and mold temperature control systems can also influence the cost.

Quality and Brand:

The reputation and brand value of the manufacturer can impact the cost of mini plastic injection molding machines. Well-established brands with a proven track record in the industry often offer machines with higher build quality, reliability, and after-sales support. These machines may come at a slightly higher cost compared to lesser-known brands.

Optional Accessories:

Some mini plastic injection molding machines may offer optional accessories or customization options, such as different mold sizes, additional nozzles, or specialized injection units. These optional features can add to the overall cost of the machine.

Conclusion:

The cost of a mini plastic injection molding machine within the 30-80t tonnage range can vary depending on factors such as tonnage, features, quality, and brand. It is essential to carefully consider your specific production requirements, budget, and long-term goals when selecting a machine. Comparing multiple suppliers, requesting quotations, and evaluating the overall value proposition in terms of machine capabilities, reliability, and customer support are crucial steps in making an informed decision.

How small can injection molding be

On average, the minimum wall thickness of an small injection molding part ranges from 2mm to 4mm (. 080 inch to . 160 inch)

As part size and dimensions increase, the complexity of design, engineering, and calibration required to construct, install, and process this 2-sided mold results in a significant increase in the cost of equipment, tooling and setup.

Small injection molding machine- Size Considerations

In theory, there is no limit to the size of products that can be manufactured through injection molding.However, in real life, plastic molding machines used to manufacture these components are limited in terms of the size of the components they can produce.

Before hiring a factory to shape for you, please inquire about the size limitations of small injection molding machine.

Small injection molding machine-Design Concerns

As mentioned earlier, most small plastic injection molding machine divide the mold into two metal parts.Therefore, things such as interlocks, undercuts, and thin and unsupported walls may not be formed the way you want them to be.

In addition, if your design does not have the correct draft angle and support, you may end up with warped parts.

Small injection molding machine-Ejectors and Cooling Lines

If you have any plastic molded parts, you may notice a faint line around the object. This is where the two halves of the mold intersect. You may also notice a rough spot on this line. This is a thin tube filled with plastic from the mold.

As the size of the parts increases, stronger molds and equipment are needed, and the production cost and delivery time of each part may also significantly increase. These increased capital expenditures will result in an increase in investment and management costs calculated in the piece price. The overall size capacity of injection molding machines is limited, but they can usually accommodate multiple parts in the mold structure. A smaller part size is equivalent to a larger number of parts manufactured per mold and mechanical cycle. A larger part size will reduce the number of parts that can be manufactured per mold and cycle.

Related information

Company:

Ningbo Haichen Servo Information Technology CO., Ltd.

Address:

Add: BAIZHANG EAST ROAD, NINGBO CHINA

E-mail:

[email protected]

Mobile/WhatsApp:

+8613967897240

Tel:

+86-574-87762980

Fax:

+86-574-87768570

GET In Touch

Please feel free to contact us if you have any needs.

Injection Molding Machine

Die casting machine

Mould

Auxilary
