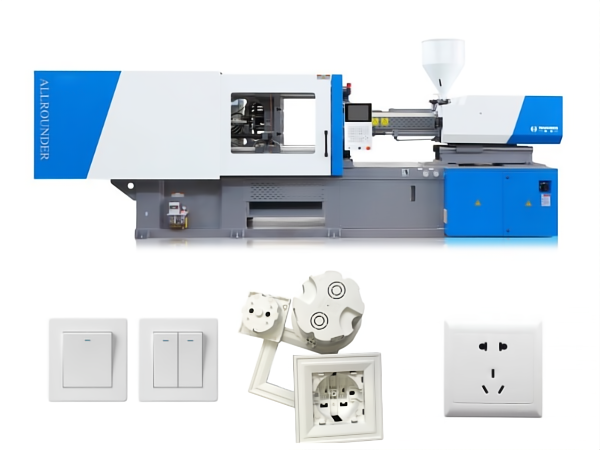

Plastic light switch panel injection mould is a kind of injection mould for manufacturing plastic panels.It work with switch injection molding machine.
It is commonly using in producing housings for electronic devices such as switch panels.
This mould is made by injecting molten plastic into the mould cavity and forming the desired shape and structure after cooling.
The design of the mould needs to consider factors such as gate location, cooling system and moulding dimensions to ensure product quality and productivity.
Functions of plastic switch panel injection moulds
There are six main functions of plastic switch panel injection moulds:
Plastic switch panel moulding function
Plastic switch panel product demoulding function
Cooling function
Multi-cavity design of plastic switch panel products
Optimisation of process parameters for plastic switch panel products
Modular design
Plastic switch panel moulding function:
Through the design of mould parting surface, cavity layout and moulding parts.
To achieve the plastic melt under high pressure to fill the cavity and solidification moulding, forming the required switch panel shape.
Plastic switch panel product demoulding function:
The mould design usually contains a core extraction mechanism (e.g. inclined guide pillar, slide, etc.).
This is using to remove the plastic part from the mould smoothly after it has been formed.
For example, a lateral core extraction mechanism can handle complex shapes of grooves or snap structures.
Cooling function:
A cooling system is provided in the mould, by controlling the surface temperature of the mould.
Accelerate the cooling and curing process of the plastic switch panel products, so as to improve the production efficiency and product quality.
Multi-cavity design for plastic switch panel products:
In order to improve production efficiency, plastic switch panel product moulds can become as a mould with multiple cavities.
This will enable the production of several identical plastic parts at the same time.
Optimisation of process parameters for plastic switch panel products:
Use simulation software such as Moldflow to optimise the injection moulding process.
This includes the adjustment of parameters such as gate position, holding pressure and time to ensure the quality of plastic parts.
Modular design:
Modular design of injection moulds improves design efficiency and reuse, and reduces manufacturing cycle time and cost.
Together, these features ensure efficient, high-quality production of plastic switch panel injection moulding.Haichen switch injection molding machine will help you to get the work done.
Plastic switch panel injection mould use steps
There are seven professional injection moulding production steps in the use of plastic switch panel injection moulds:
- Plastic switch panel raw material preparation
- Plastic switch panel injection mould preheating
- Plastic switch panel injection mould injection moulding
- Plastic switch panel cooling
- Plastic switch panel injection mould demoulding
- Post-treatment of plastic switch panel
- Plastic switch panel quality inspection
Plastic switch panel raw material preparation:
Feed the plastic granules or liquid into the mould through conveyor belt.
Plastic switch panel injection mould preheating:
Heat the mould to a certain temperature to ensure that the plastic can be evenly distributed and fill the mould smoothly.
Plastic switch panel injection moulding:

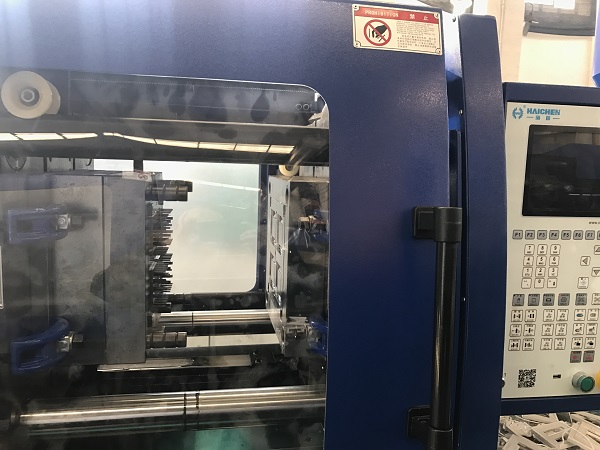

Molten plastic is injected into the mould by switch injection molding machine, while the injection pressure is monitored to ensure product quality.
Plastic switch panel cooling:
The plastic is cured and moulded in the mould, the cooling time depends on the product requirements.
Plastic switch panel injection mould demoulding:
When the plastic is completely cured, the mould is opened and the moulded parts are taken out from the mould.
Plastic switch panel post-processing:
The moulded parts are further processed or cleaned, such as sanding and painting.
Plastic switch panel quality inspection:
Conduct dimensional measurement and appearance inspection on the moulded parts to ensure that they meet the design requirements.
These steps require precise control of factors such as temperature, pressure and time to obtain high quality plastic switch panels that meet design requirements.
Configure the injection moulding machine according to the plastic switch panel mould
Haichen can configure an injection moulding machine to suit your plastic switch panel mould.
There are five areas of selection and configuration details:
- Switch panel mould structure
- Switch panel injection moulding machine type
- Plastic switch face process parameters
- Plastic switch face mould design
- Switch panel injection moulding machine equipment performance
Switch panel mould structure:
Plastic switch panel usually has complex internal structure and multiple snap features.
Therefore, it is necessary to use lateral core pulling mechanism and oblique guide column core pulling mechanism to complete the shaped hole moulding and demoulding of complex structure.
Switch panel injection moulding machine type:
Injection moulding machine with plane rotary dial shift mechanism are selectable.
In order to simplify the mould structure design and achieve the sequential injection and demoulding of different colour plastic parts.
Plastic switch face process parameters:
According to the optimisation analysis of Moldflow software, the reasonable process parameters include melt temperature 230.8℃.
The mould surface temperature is 52.5℃, injection time is 1 second, mould opening time is 5 seconds, and the maximum pressure of holding pressure stage is 200 MPa, and so on.
Plastic switch face mould design:
The mould design should ensure the smooth demoulding of the plastic parts, using a combination of concave and convex moulds.
And use Moldflow software for DOE analysis to optimize the mould design.
Switch panel injection moulding machine equipment performance:
The switch panel injection moulding machine should have high-precision clamping and positioning ability to avoid impact damage to the mould.
Choosing the right Haichen injection moulding machine and reasonably configuring the mould structure and process parameters can effectively improve the moulding quality and production efficiency of plastic switch panel.
