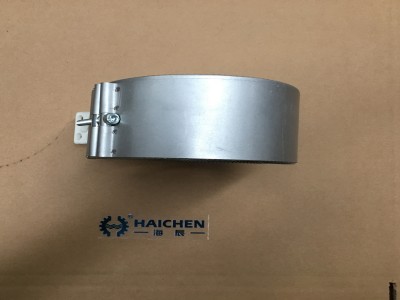

A heating band for an injection molding machine is a type of industrial heater designed to heat the barrel or cylinder of the machine where raw plastic resin is melted before being injected into a mold.
These heating bands are essential for maintaining the precise temperatures required for the plasticizing process, ensuring the resin achieves the correct viscosity for molding.
A Heating band designs and configurations can be adapted to different barrel sizes and shapes to suit a variety of injection molding needs. Heating bands typically consist of an electric heating element, an electrically insulating material, and a housing, which work together to transfer heat efficiently.
Key Features of a heating band for injection molding machine
Material Composition:
- Typically made of stainless steel or other durable materials to withstand high temperatures and environmental stresses.
- Using nickel-chromium (NiCr) alloy wire to make the heating element.
Design:
- Shaped like a band or ring to fit snugly around the cylindrical barrel.
- Comes with adjustable clamps for secure attachment.
Common Types:

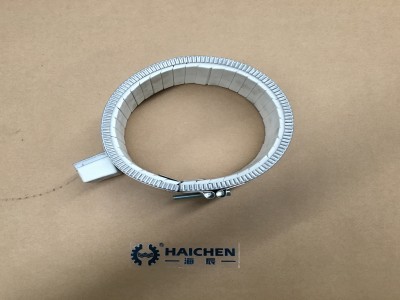

- Ceramic Band Heaters: Efficient at retaining heat, with a ceramic core for insulation.
- Mica Band Heaters: Cost-effective and suitable for lower temperature ranges.
- Mineral Insulated Band Heaters: Feature compact construction for high performance. It supports very high watt densities and temperatures up to 1400°F (760°C).
- Cast-in Heaters: Made of aluminum or bronze with embedded heating elements, providing even heat distribution.
The function of a heating band
- Melting Plastic: Heats the barrel to the specific melting point of the plastic resin being used.
- Maintaining Temperature: Ensures consistent temperature during the molding cycle, critical for product quality.
- Energy Efficiency: Minimizes heat loss and improves energy use.
Applications Beyond Injection Molding
Hot Runner Systems:

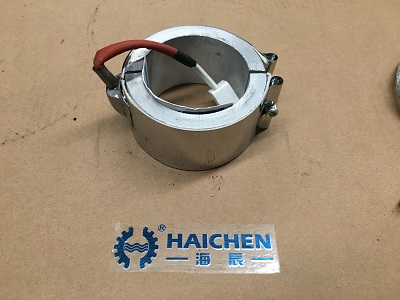

In hot runner systems, a heating band is critical to maintaining the temperature of the nozzles and manifolds.
Precise temperature control ensures that the molten plastic passes smoothly through the channels without degradation or premature curing.
Gun barrel heating:
The barrel of an injection molding machine also requires precise temperature control.
A heating band surrounds the barrel to provide uniform heating of the plastic material entering the screw and mixing it.
Mold Heating:
In some advanced injection molding processes, need to heat the mold. Install the Heating bands on the outside of the mold to preheat the mold before the injection process begins.
This can help reduce cycle times and improve the quality of the final product.
In summary, heating tape plays a vital role in injection molding machines, ensuring uniform heating and temperature control of the material, thus improving production efficiency and product quality.
Haichen is an industry leader in the production of fast, reliable quality heaters for plastics and packaging, providing OEMs with durable, customized solutions to meet their unique heating needs. If there is any need, please come to consult us.
