Features of pet preform injection molding machine

The features of PET preform injection molding machines include precision engineering, and energy efficiency for high-quality bottle production.

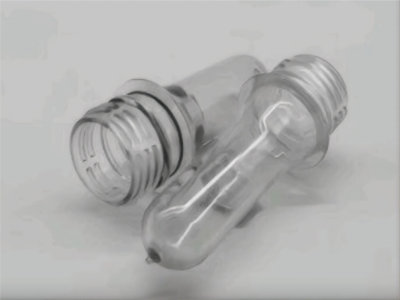

PET preforms (polyethylene terephthalate) are the core raw materials for daily necessities such as beverage bottles and food packaging boxes. Manufacturers process them into final containers through the injection molding process.

When producing such preforms, injection molding machines need to have specific performance – such as precise temperature control systems to avoid material degradation and high-response screws to ensure uniform plasticization.

These characteristics are directly related to the sealing of the bottle mouth and the transparency of the bottle body, which in turn affects the shelf life of beverages and consumer experience.

This article will explore in depth how injection molding machines can improve production efficiency and product qualification rate by optimizing technical parameters (such as injection speed and clamping force).

PET material characteristics and process challenges

PET (polyethylene terephthalate) has become the preferred material for beverage bottles and cosmetic packaging due to its excellent gas barrier properties, impact resistance, high transparent gloss and food safety. However, during the injection molding process, special attention should be paid to two key issues:

• Hygroscopicity control: If the water content of PET particles exceeds 0.05%, a hydrolysis reaction will occur at high temperatures, resulting in molecular chain breakage and acetaldehyde production, and pre-crystallization will form white defects. In actual operation, the particles need to be placed in a dehumidified and dry environment at 177-182℃ and a dew point of -29℃ to -40℃ for about 4 hours to ensure that the moisture content meets the standard.
• Crystallization control: PET has a narrow melting temperature range (290-315℃), and must be quickly reduced to below the crystallization temperature during the cooling stage to form a transparent amorphous preform. This goal is often achieved in production by precisely controlling the mold temperature and cooling rate.

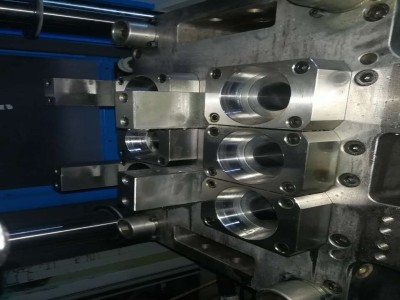

Features of PET machine

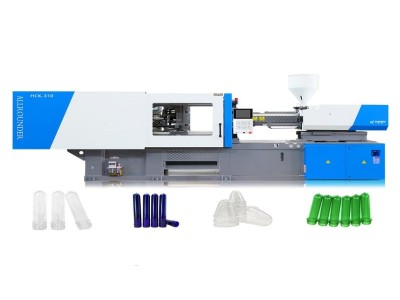

A PET preform injection molding machine is a piece of equipment specifically designed to produce PET preforms. These preforms need to meet precise specifications to ensure the quality of the final bottle.

High-Speed and High-Pressure Injection System

Our PET preform injection molding machine is equipped with a high-speed and high-pressure injection system. This system allows the molten PET material to quickly and evenly fill the entire cavity of the mold.

In this way, we can complete the injection process more accurately. And ensure that the size of each preform produced meets the standard and the quality is stable and reliable.

Advanced Heating and Cooling Systems

Our equipment has a built-in precision temperature control system that can accurately adjust the temperature of the molding process according to the characteristics of PET materials.

Because PET is extremely sensitive to temperature changes. This system will monitor and maintain the most suitable temperature range in real time: the melt barrel is controlled at 250-270℃ to prevent decomposition. And the mold is kept at 80-120℃ to ensure stable molding.

There are two core purposes for doing this: one is to allow the raw materials to flow evenly to every corner of the mold to avoid uneven thickness; the other is to eliminate shrinkage marks or bubbles caused by temperature differences to ensure that each preform meets quality requirements.

Dual-Cylinder Injection Unit

In the PET preform injection molding equipment, the dual-cylinder injection unit achieves efficient operation through a unique mechanical structure design. The device adopts a dual-guide support system and a balanced dual-cylinder collaborative drive, so that the screw is evenly stressed during the advancement process, thereby ensuring the stability of the injection action. This design allows the plasticization and injection processes of the material to be carried out simultaneously, significantly shortening the production cycle.

From the actual production effect, the dual-cylinder structure combined with the linear guide rail design reduces the movement resistance and makes the injection speed control more accurate. The operator can also quickly calibrate the center alignment of the nozzle and the mold through the fine-tuning device. These features jointly improve the consistency of product size and ensure the stability of the yield rate in mass production.

Energy-Efficient Design

Energy saving is the core consideration in the design of PET preform injection molding machines. These machines achieve energy efficiency improvements through two key technologies:

• Variable frequency pump drive system: It can adjust the hydraulic oil flow in real time according to production needs. Avoiding energy waste caused by continuous full-power operation of traditional pumps. When the equipment is in the cooling or standby stage, the system automatically reduces power output, significantly reducing ineffective energy consumption.
• Servo motor control: The injection pressure and flow are precisely controlled through a closed-loop feedback system. For example, in the melting stage, the motor is only started when needed and immediately goes to sleep after completing the action, which can save energy by 20%-80% compared with traditional motors.

Customized PET Preform Injection Molding Solutions

We provide customized PET preform injection molding equipment for different production needs. These equipment ensure high precision and stability of preform molding through precise temperature and pressure control (injection temperature 250-270℃, mold temperature 80-120℃).

The built-in intelligent system of the equipment can flexibly adjust the bottle mouth structure and wall thickness parameters. Whether it is a drinking water bottle or a food container, it can produce a uniform specification preform with high transparency and strength. All products comply with FDA food safety certification and industry pressure test standards (usually requiring a pressure of ≥1.2MPa).

Analysis of actual production cases of HAICHEN

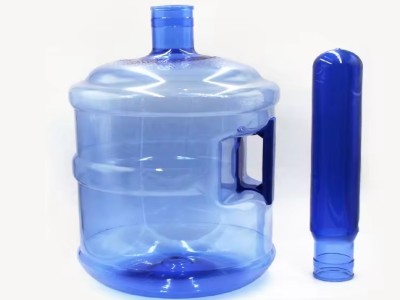

Pre made 5-gallon water bottle (20L capacity)

• Equipment: HCK360-PET specialized injection molding machine (locking force 3600kN)
• Parameters:

• Result: The wall thickness uniformity of the prefabricated product reaches 95%, and the acetaldehyde content is less than 1ppm, which meets FDA standards.

Efficient production of 48 cavity PP bottle caps

• Equipment: HAICHEN HCK160 injection molding machine (locking force 1600kN)
• workmanship
  • Material: PP (excellent chemical resistance)
  • Cycle: 15 seconds (including automatic ejection and mechanical arm picking)
  • Yield: 99.2% (low burr defects)
• Customer feedback: “HAICHEN equipment has exceeded expectations in improving efficiency and supporting the team to respond to faults in real time.

High gloss surface preparation for cosmetic bottles

• Equipment: PET410 ton servo model (low molecular stress design)
• Innovation point:
  • Composite mixing screw: improves pigment dispersibility, color difference Δ E<0.5.
  • Hydraulic servo system: 50% energy-saving compared to traditional hydraulic presses, with a 20% increase in response speed.

By adopting technologies such as dedicated PET plasticizing components (such as low-shear screws). Customized infrared heating rings (10% energy saving), and dual-platen center clamping structures. PET preform injection molding machines enable manufacturers to shorten single production cycles by 20% while ensuring the transparency and dimensional stability of preforms.

This efficient production capacity directly responds to the rigid demand for lightweight packaging bottles in industries such as beverages, edible oils, and cosmetics. For example, a 48-cavity mold mineral water bottle preform production line can produce 70,000 qualified products per hour. While meeting the strict standards for low acetaldehyde content (AA value) for food-grade packaging.

More importantly, the equipment is compatible with the characteristics of 50% recycled PET raw materials. Providing sustainable solutions that meet the requirements of the circular economy for daily chemical, food and beverage companies.
