Aluminium Alloy Road studs are mainly used on both sides of the road, in the middle, sharp bends and highway exits. Aluminium Alloy Pressure Die Cast Road Stud is fixed on the road surface to play a role in marking the protruding marking block. It can be used to mark the centre line, lane demarcation line on the highway or other roads, and can also be used to mark the curved entrance/exit ramps, guide markings, road narrowing, road obstacles and other dangerous sections.
Aluminium Alloy Pressure Die Cast Road Stud size
Production machine of Aluminium Alloy Pressure Die Cast Road Stud
Special process of Aluminium Alloy Pressure Die Cast Road Stud
Aluminium Alloy Pressure Die Cast Road Stud size
The Aluminium Alloy Pressure Die Cast Road Stud come in two sizes: 10×10 and 15x15cm and weigh 0.32kg and 0.58kg respectively.
Characteristics and application areas of different sizes of Aluminum Road Studs (Aluminum Road Stud):
1, made of modified reinforced cast aluminium can withstand the strong impact of car tyres, impact resistance is very strong.
2, the shell has a handle on both sides of the position, convenient for workers to install the shell pinch without dirtying the reflector
3、Special pattern design on the bottom surface, with glue, firmly connected with the ground, strong stability and durability.
4、Resistant to high and low temperature, water, oil, chemical, saline and alkali corrosion, wind and sand abrasion.
5, reflector performance is good, the reflector for the micro-prism total reflection reflector, reflective brightness to diamond-level reflective brightness studs role: strong reflective: the luminous body produces a diamond effect, so that the car in the role of the light, so that the driver in the 150 ~ 200m away from the feeling of the diamond-like eye-catching reflective, more conducive to night-time driving, to play a better role in traffic safety warnings to reduce the incidence of traffic accidents. Road spike installation location: mainly used on both sides of the highway, bridges, sharp bends, highways, car parks or underground garage roads.
Production machine of Aluminium Alloy Pressure Die Cast Road Stud
Cold chamber Die casting machines are the main machines used to produce Aluminium Alloy Pressure Die Cast Road Stud. For the different sizes of Aluminium Alloy Pressure Die Cast Road Stud mentioned above, we also need to design the number of cavities in the mould and configure the exact machine model in conjunction with the different production targets.
Special process of Aluminium Alloy Pressure Die Cast Road Stud

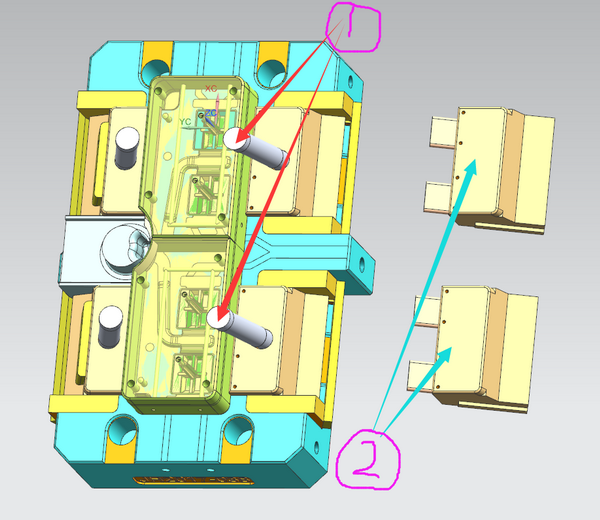

On each piece of Aluminium Alloy Pressure Die Cast Road Stud, the customer will request to put some exclusive logo or special mark, technically similar to replace the seat back pattern of the back plate, we can set up the slider with text on the design of the mould to do the demand of changing at any time.
Steps:
1. Remove the corner pins on the opposite side of the sprue spreader.
2. Replace the corresponding slider core (without angle pin hole)
Note: In the case of long sliders (without angle pins), the stopper should just press against the block holder to ensure that the block holder does not move.
The different application scenarios for Aluminium Alloy Pressure Die Cast Road Stud will dictate different dimensions, internal structures and signage characteristics, so careful analysis of the product is required when selecting the right Aluminium Alloy Pressure Die Cast Road Stud die casting machine
