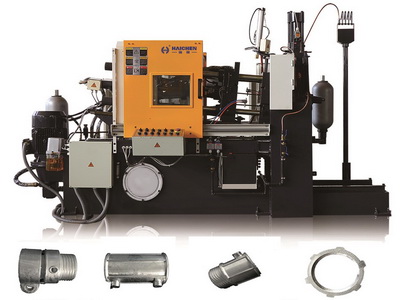

Zinc pipe fitting die casting machine uses 50ton hot chamber die casting machine.
What is the zinc pipe fitting application?
Galvanised Pipe Fittings, made by zinc raw material by hot chamber die casting machine. The metal joints are made of zinc alloy die-casting. And the surface is galvanized, frosted or chrome plated. The structure is compact and the strength is high. The connection between steel pipes and metal hoses is reliable. 50ton zinc pipe fitting hot chamber die casting machine usraully uses for zinc pipe fitting. Pipe couplers slip over the outside of two pipes to connect them, usually permanently. A coupling can be a reducer, or reducing coupling, meaning they reduce flow by joining a larger pipe to a smaller size. Adapters use when connecting two pipes of different types.
What is hot chamber die casting machine?
Hot chamber die casting is a type of alloy die casting that uses low melting temperature materials. The hot chamber die casting process can use magnesium or zinc. Through this method, molten metal automatically supplies to the hot chamber die casting machine . Which through a “gooseneck” immersed in a furnace filled with molten metal. At the beginning of the cycle, the piston retracts, filling the goose-neck with molten metal. The piston is activated, and the metal is inserted into the mold through a goose-neck tube.
Why choose zinc metal material to produce pipe fittings?

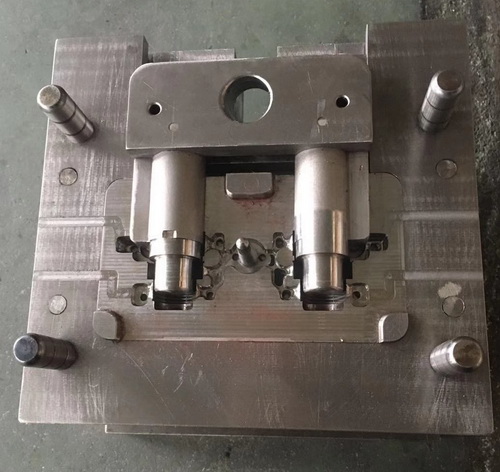

Zinc is one commonly uses alloy for a wide range of components across all industries. With its versatility and corrosion resistance, Its physical and chemical properties make it especially well-suited for pipe fittings. Zinc alloys can melt with a low melting point. And it’s easily to use electroplate, spray and painting. Moreover, the zinc cost price is cheaper than that other metal alloys. Produce with pipe fitting metal injection mou mould.
After picking up the parts, use an edge trimmer to remove the runner material head and strapping, use a small shot blasting machine to polish the incisions, drill small screw holes, and then the customer can apply an anti-rust layer according to their own color matching.
Haichen 50ton zinc pipe fitting hot chamber die casting machine component unit
- PLC CONTROLLED UNIT PLC with LCD Touch Screen provides function as parameter settings and production monitoring.Machine adopts the world famous brand electrical components to ensure stable,safe and reliable performance.
- CLAMPING UNIT High strength and wear resistant casting platens and toggles.toggle system adopts double link tie bar guidance,achieves the effect of rapid,strong,durable and stable.Hydarlic driven gear type die thickness adjusting device makes the operation quickly.
- HYDRAULIC SYSTEM Oil hydralic system adopts proportional controlled system pressure and flow,achieves multi-stage pressure& speed control,and low pressure die clamping function.European or japanese famous valve and oil seals ensure quality and durability;The well-known brands improve the performance.The high-low double pump or single pump with low noise save energy and improve production efficiency.
- INJECTION UNIT two stages Injection controls with piston type accumulator. And the high flow cartridge valve achieves high speed operation & stable injection. All hot parts made of high-quality steel to ensure stable operation in the environment of high temperature,high pressure.

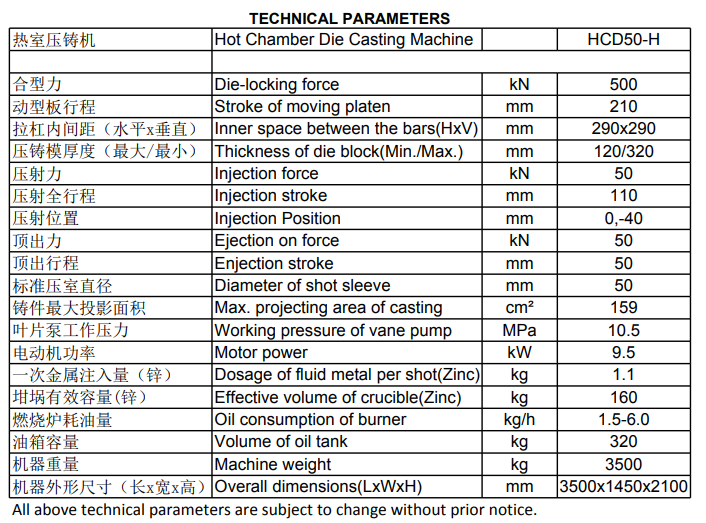

Haichen 50ton zinc pipe fitting hot chamber die casting machine technical data.
Welcome contact us for any further discussing. We invite you to buy our Haichen 50ton zinc pipe fitting hot chamber die casting machine for your zinc pipe fitting production. We will offer good serivce for before-sale and after-sale.
Haichen die casting machine
Haichen is one Chinese die casting machine manufacturer for more than 10years. We produce both high pressure cold chamber die casting machine and hot chamber die casting machine.They have durable and highly precise features.
Haichen also produce die casting machine auxiliary equipment. Such as conveyor, vacuum machine, mold temperature controller, industrial robot, sprayer and so on.
We supply cold chamber and hot chamber die casting machine spare parts. When you have any demand, feel free to contact us.
