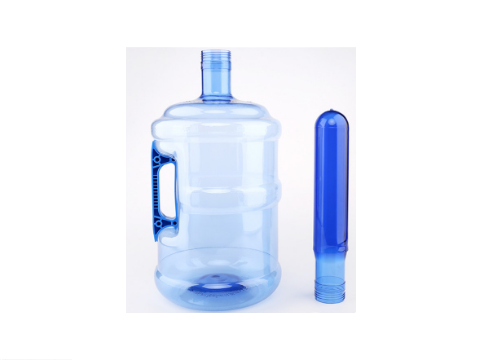

5 gallon PET preform production line including two machine:injection molding machine and blowing machine.Also need auxiliary and PET molds.
To make a 5-gallon PET preform, the granulated resin must first be heated until a smooth mixture is formed, it is injected into a mold and then hardened by a cooling system with thick walls because this preform is not yet complete. It must be blow-molded so that the bottle can be made.
Here, we will share one video for how the 5 gallon pet preform made by injection molding machine :
Overview of 5 gallon PET preform production line
5 gallon pet preform production will need an injection molding machine. After the preform injection, it will need a blowing machine to blow it and transform into a bottle.
Anyway, the whole 5 gallon pet preform production line to 5 gallon pet preform also not just need one injection molding machine, also needs other devices to produce together.
Component of a 5 gallon PET preform production line
A 5 gallon PET preform production line,will need many device work together.Noramlly it will need 5 main device in one PET preform production line.Here we will learn it one by one.
- 5 gallon pet mould
- Injection molding machine
- Plastic Dryer
- Chillers
- Other device

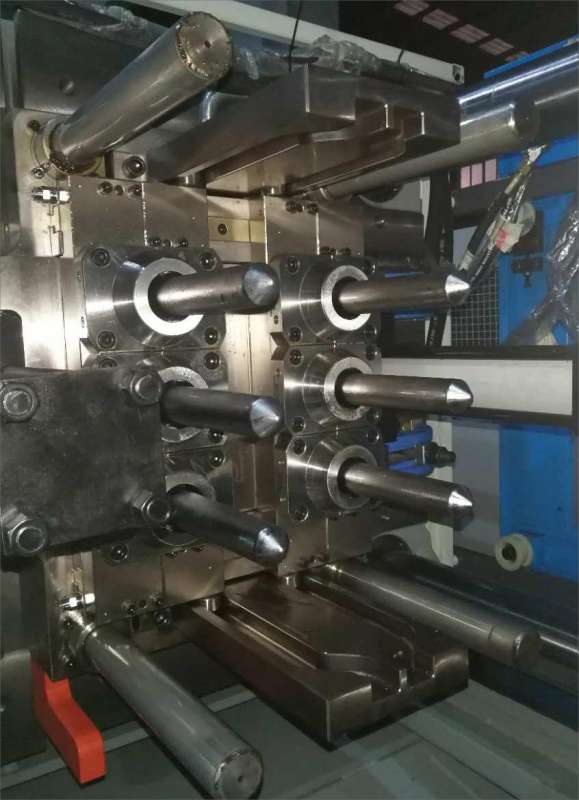

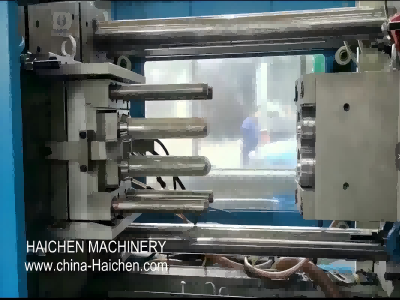

5 gallon pet mould
The 5-gallon preform tensile test adopts a computer simulation design to ensure the success rate of bottle blowing.
Adopting the world’s leading double taper positioning technology, each cavity is independent self-locking, with concentricity ≤ 0.08mm.Mould cavities and cores are made of mirror plastic mould steel imported from Sweden and Germany, with corrosion resistance, high hardness, and long life.
Threaded port according to international standards, imported nitrided steel, high hardness, long life. Advanced runner design, single-point nozzle temperature regulation, and high heating temperature improve the quality of preforms.
Excellent cold chamber warm water cooling system, realizing high efficiency and fully automatic production . Free scissor gate ensures automatic mould production and reduces workers’ labor.
Mould life is at least 3 million times mould times. Flow channel adopts PID control system, with automatic repair and automatic protection function, prolonging the service life of electrical equipment;The temperature is controlled within 1 degree, which ensures that the burning of the material in the hot runner, and the yield rate can be over 99%;
The new nozzle design makes it easier to maintain the mould. Parts ejector nozzles, heated parts, insulated parts, and thermocouples can be easily replaced without removing the housing, which helps to reduce downtime and save maintenance costs.

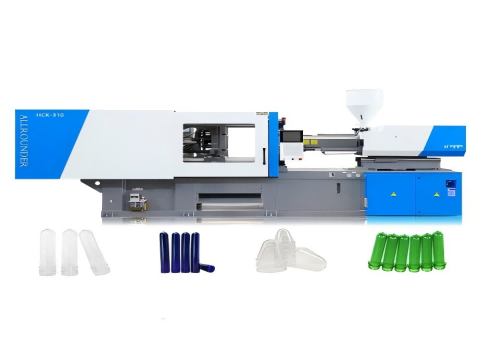

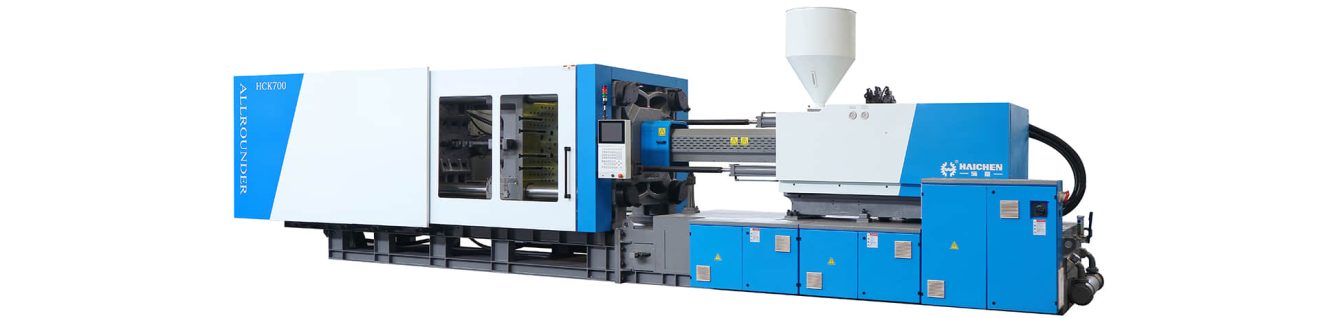

Injection molding machine
Yes of course, after you have the 5-gallon preform mould, you will need the main machine: An injection molding machine for the 5-gallon preform production line.
After the 5-gallon preform mould load on the injection machine, the machine will melt the plastic raw materials and inject them into mould. We have to wait for the materials to cool down, and open the mould. Ejected out the the 5-gallon PET preform.
The PET injection molding machine, it will be special than the standard IMM.
1)The Screw and barrel will need to suit for PET materials.
2)The injection rate will be higher than standard.
3)Ejecter: As the 5-gallon preform looks like a barrel, we need higher ejection power to eject it out.
Plastic

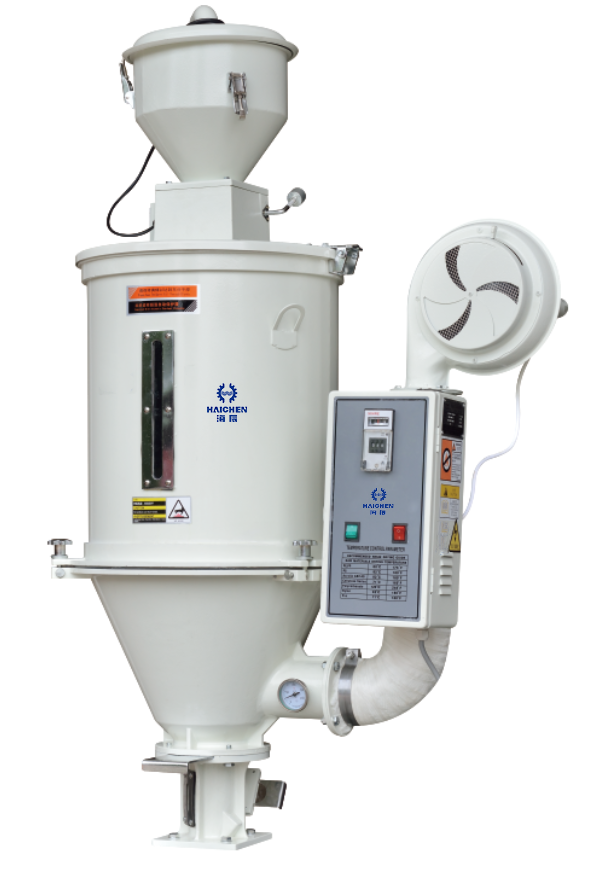

The highly hydrophilic nature of the PET raw material can damage the quality of the finished preform (white spots, etc.), preventing the surface from achieving the desired transparency. Plastic Dryer for 5 gallon pet preform production line, can help the operator to load the material automatically.
We can match the adapted dryer with an even distribution of hot air and a high thermal efficiency, which reduces the drying time considerably. Precise temperature control ensures and maintains high-temperature accuracy. Save time and labor As the hopper body and the bottom are designed separately, it is very convenient to clean the material and the material renewal is quite simple and quick. Trustworthy design Beautiful appearance, sturdy structure, and short material melting time greatly increase the ejection speed.
There is also a drying and dehumidifying feeding device in one piece, which eliminates the secondary moisture return of raw materials that have already finished drying during transit.

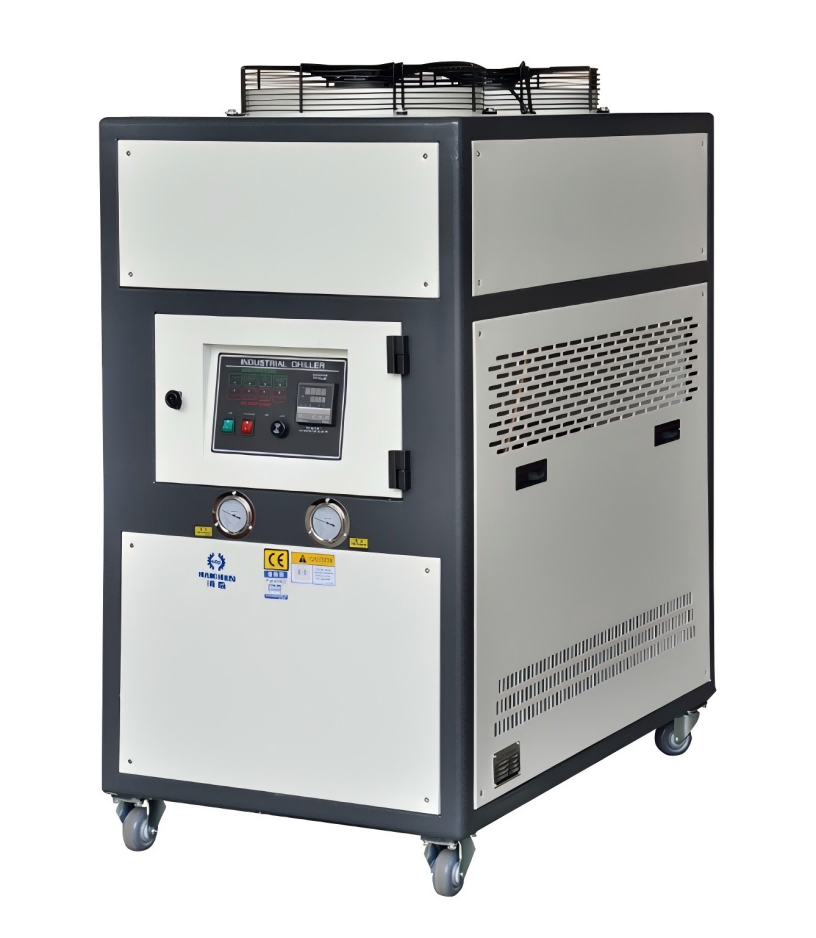

Chillers
The chiller supplies the cooling water to the whole 5 gallon pet perform production line, including mould, and machine.
5 gallon pet preform moulds are typical hot runner moulds and the cooling time of the PET product is an important step in the production cycle time, so a chiller is one of the necessary auxiliary machines.
We can provide air-cooled chillers that precisely cool a production line. You can also choose an integrated water-cooled chiller line to meet the cooling needs of your entire plant.

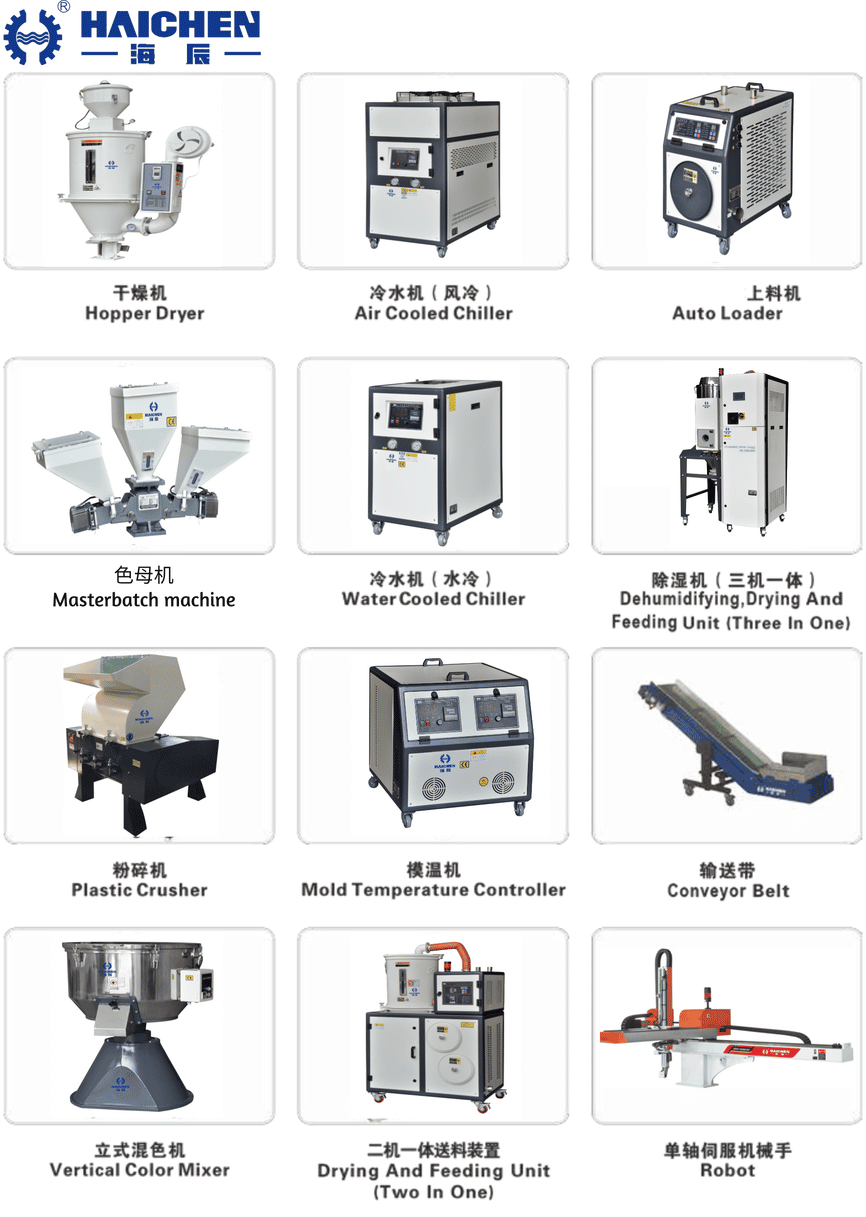

Other device
The other small auxiliary machines such as shredders and conveyor belts can also enhance part of the automation process and can be selected as appropriate.
Case study: Step-by-step process of producing 5 gallon pet preform
- Pre-drying
- Injection molding
- Cooling control
- Ejection
- Blowing the PET preform barrel
Pre-drying
Due to the characteristics of PET materials, all PET materials need to be dehumidified before further processing, and here we use dryers or integrated drying and dehumidifying loaders.
Injection molding
In this process, PET material is injection molded by an injection molding machine (IMM).
From preform to 5 gallon water bottle PET The preform is heated again to around 110°C. The preform can then be molded again and stretch-blown into a bottle exactly like the 5 gallon water bottle.
Injection molding by injection molding machines (IMM) to produce all suitable types of PET material. It is designed for large injection volumes and high injection speeds and pressures.
Cooling control
Precise cooling control after each cycle will determine the finished quality of the PET preforms. In this process, we use air-cooled chillers, in addition, you can also choose precise mold temperature control.
Ejection
After the preform cooling down, the preform will be ejected out of the mould.

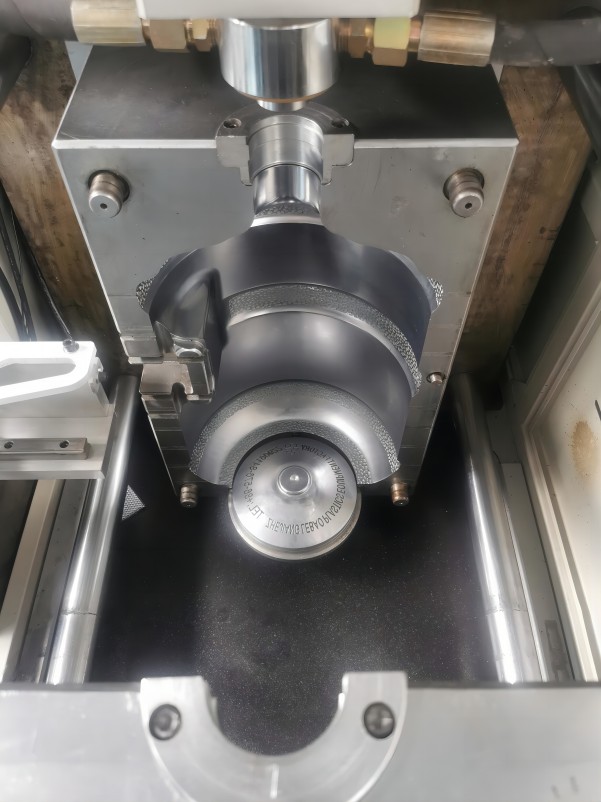

Blowing the PET preform barrel
Haichen successful cases for 5 gallon pet preform production line
- 4 Cavity production line
- Cycle time: 120 sec /4 pcs
- Production: 960 pcs / H (730g preform)
To 5 gallon PET preform/bottle, Haichen has accumulated rich experience, in the past 20 years. Haichen’s successful cases are not just for 5 gallon pet preform production lines, but also suited for 4 gallon,3 gallon—or other necksize PET bottle preform.
Other issues
- More detailed production line options
- Challenges and solutions in the plastic injection production process
- Future prospects and developments 5 gallon pet injection molding production line
More detailed production line options
Note:
1 The threaded port and core are interchangeable so that different 5 gallon bottle pet preforms can share one mould.
2. Typical 5 gallon pet preform’s length is 400mm, causing the mold opening stroke to double. It takes 800 to remove. (Similar to barrels) causing the machine to increase the mold opening stroke.
Treatment plan:
1.Change machine: two-plate machine, or change large machine. It is a waste of
2.Or change the mould: add the extraction core, the cavity side shift. The demoulding is carried out outside the mould cavity.
3.One output of 5 gallon pet preform will need 360PET, cycle time:100s;One cycle of two cavities will need HCK410PET machine to do the job, cycle time:120s/4 cavities with 530PET injection molding machine. The premise of choosing this kind of machine is: add core pulling, move the cavity side by side. The demoulding is carried out outside the mould cavity. Cycle time, the main time consuming parts are pre-molding and demoulding.
Cooling and pre-molding can share the time period whether it is necessary, while pre-moulding and ejecting, dual oil circuit general mould makers.
We’ll make the mold thickness thinner so the 2-cavity can fit the HCK360PET. But this will shorten the mold’s life. For a high-standard mold, we’ll thicken it. The 2-cavity mold will then need 800T, so for high standards, you can only choose our HCK410PET injection molding machine.
Challenges and solutions in the plastic injection production process
More customers will want an injection&blow molding line to produce 5 gallon bottles. In the trend of industry four point zero this machinery to fully replace the human labour will be a general direction.
Future prospects and developments 5 gallon pet injection molding production line
While maintaining the technological advantage of precise production of injection molding, we will further develop technologies to enhance production efficiency, such as all-electric technology, storage and injection separation control technology, and pre-processing technology.
The purpose is to be able to take up the most 5 gallons of PET perform production time in the storage stage, to do with the previous cycle of injection molding, cooling, opening and closing the mould, picking up the pieces of action at the same time or interspersed, to achieve the purpose of improving the efficiency of the 5 gallons of PET preform production.
This enables it to maintain its consistent quality advantage in comparison with the injection blow molding machine.
Hope the artical will help you to know how to produce 5 gallon bottle, also the 5 gallon PET preform production line.It will not easy to crate an injection molding factory for 5 gallon PET preform.Haichen also will share the Haichen technology for PET preform injection in future.
Key Considerations When Selecting Injection Molding Machines for Water Cooler Preforms
For manufacturers investing in PET production lines, choosing the right injection molding machine is critical for 5-gallon water cooler preforms. Key factors include:
- Clamping force: Minimum 1,200 tons for consistent wall thickness in large preforms
- Shot capacity: 120-150oz to handle 180-220g preform weights
- Energy efficiency: Look for machines with ≤45kW/kg energy consumption rates
Haichen’s HCK-PET series machines, for example, offer specialized configurations for PET preform production, including dual-platen designs that reduce mold deflection by 30% – a common issue in large preform manufacturing.
Mold Design Optimization for 5-Gallon PET Preforms
The PET production process demands precision molds that can withstand high-cycle operations. For water cooler preforms, consider:
| Feature | Benefit | Technical Spec |
| Hot runner system | Reduces material waste | ≤0.5% regrind ratio |
| Beryllium copper inserts | Improves cooling efficiency | 20-25% cycle time reduction |
| PCO1881-compliant cavities | Ensures thread accuracy | ±0.02mm tolerance |
Optimized mold designs can increase output by 15% while reducing maintenance costs by 40% in PET preform production lines.
Cost Analysis: ROI for 5-Gallon Preform Production Lines
For manufacturers evaluating PET production line investments, here’s a breakdown:
- Initial investment: $1.2-1.8 million for a complete setup (machine + mold + auxiliaries)
- Production capacity: 12,000-15,000 preforms/day (24-hour operation)
- Payback period: 18-24 months at 75% capacity utilization
Case studies from Haichen’s clients show that proper machine-mold pairing can reduce per-unit costs by 12-15%, making water cooler preforms production more profitable.
